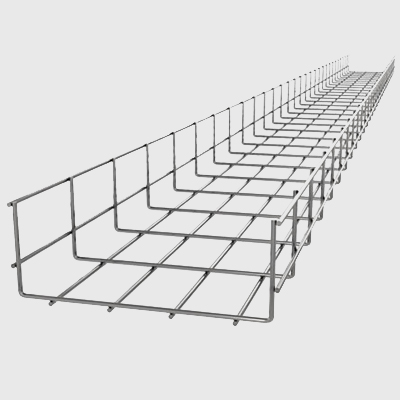

Welded Wire Cable Tray

Welded Wire Cale Trays can be used to provide the flexibility, support as well as cooling capabilities to the cables. One of the main benefits of a Welded Wire Cale Tray is that it's cheaper and quicker to install. The flexibility provided by being able to create fittings on site can be invaluable especially when you consider just how quickly these bends and fittings can be made. Its design allows better air circulation and heat dissipation thus reducing numerous potential problems caused by overheating cables. Welded Wire Cale Trays are a lot lighter than regular perforated sheet cable trays and hence cost effective for similar load ratings.



Technical Specifications
Standard specifications of trays with a width of 600mm and depth of 100mm can take loads up to 300 Kg per meter. It can be increased with further customization.
The wire diameter is 4mm(customizable). Mesh Size – 100mm * 50mm (customizable)
Our Welded Wire Cale Trays has been tested in accordance with NEMA standards and Indian Standards.
Available in Pre galvanized, Post Hot Dip Galvanized , Powder Coated and Stainless Steel

Applications
Welded Wire Cale Trays are a lot lighter than regular perforated sheet cable trays and hence cost effective for similar load ratings. It finds its applications in power plants, airports, hospitals, substations, and housing projects etc.
